Name: DS-IPC-T12HV3-IA
SKU: 409
Availability: InStock

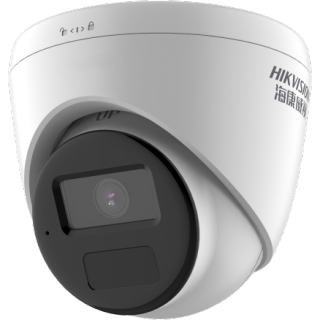

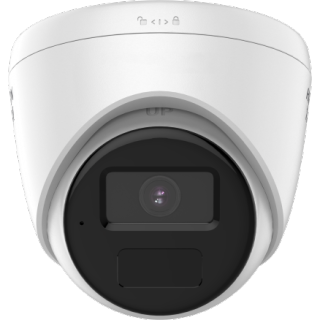

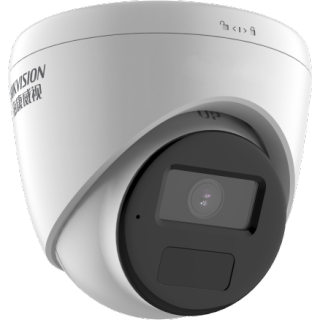

Hikvision infrared array conch-shaped network camera has a maximum resolution of 2 million pixels and can output 25 fps real-time images at this resolution
Support motion detection (support humanoid detection) and anomaly detection
Supports backlight compensation, strong light suppression, 3D digital noise reduction, digital wide dynamic range, and adapts to different environments
Using high-efficiency array infrared lamps with long service life, infrared irradiation can reach up to 30 m
1 built-in microphone
IP67 dustproof and waterproof design, high reliability

Alarm trigger

Motion detection (supports humanoid detection), abnormality

network	1 RJ45 10M/100M adaptive Ethernet port
Audio	1 built-in microphone

network protocol	TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
Simultaneous preview of channels	Up to 6 channels
Interface Protocol (API)	Open network video interface, ISAPI, SDK, GB28181
User management	Up to 32 users can be managed with 3 levels of user rights: administrator, operator, ordinary user
client	iVMS-4200
Browser	Use local service preview: Chrome 57.0+, Firefox 52.0+, Edge 89+

Fill light distance	Up to 30 m
Fill light type	Infrared light
Prevent fill light from overexposure	support
Infrared wavelength range	850nm

Start-up and operating temperature and humidity	-30 °C~60 °C, humidity less than 95% (no condensation)
Linkage method	Upload center
Power supply method	Non-PoE model: DC: 12 V ± 25%, supports anti-reverse polarity protection PoE model: DC: 12 V ± 25%, supports anti-reverse polarity protection PoE: IEEE 802.3af, CLASS 3
Equipment weight	285g
Packing size	145 × 145 × 128 mm
Product size	Ø110 × 93mm
Weight with packaging	473g
Storage temperature and humidity	-30 °C~60 °C, humidity less than 95% (no condensation)
Common functions	Heartbeat, password protection, watermark technology
Factory reset	Supports client or browser recovery
Current and power consumption	Non-PoE models: DC: 12 V, 0.42 A, maximum power consumption: 5 W PoE models: DC: 12 V, 0.42 A, maximum power consumption: 5 W PoE: IEEE 802.3af, CLASS 3, maximum power consumption: 6.5 W
Power interface type	Ø5.5 mm round mouth

Main stream frame rate resolution	50 Hz: 25 fps (1920 × 1080, 1280 × 720)
Substream frame rate resolution	50 Hz: 25 fps (640 × 480, 640 × 360)
video compression standards	Main stream: H.265/H.264 Sub-stream: H.265/H.264
Video compression bit rate	32Kbps~8Mbps
H.264 encoding type	BaseLine Profile/Main Profile/High Profile
H.265 encoding type	Main Profile
rate control	Fixed code rate, variable code rate
ROI	Not supported

Focal length & field of view	2.8 mm, horizontal field of view: 104.9°, vertical field of view: 58.2°, diagonal field of view: 123.2° 4 mm, horizontal field of view: 81.3°, vertical field of view: 43.6°, diagonal field of view Angle: 96.9° 6 mm, horizontal field of view: 50.9°, vertical field of view: 29.3°, diagonal field of view: 58.1° 8 mm, horizontal field of view: 39.4°, vertical field of view: 21.7°, Diagonal field of view: 45.6°
Lens size interface	M12
Maximum aperture number	F2.0

smartIR	support
Image settings	Mirroring, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable through the client or browser
Day and night switching mode	Day, night, automatic, scheduled switching
image enhancement	Backlight compensation, strong light suppression, 3D digital noise reduction

protection

IP67

audio compression standard	G.711alaw/AAC-LC
Audio compression bit rate	64 Kbps (G.711alaw)/16~64 Kbps (AAC-LC)
Audio sample rate	8kHz/16kHz
Audio environment noise filtering	support

Sensor type	1/2.7″ Progressive Scan CMOS
Maximum image size	1920 × 1080
shutter	1/3 s~1/100,000 s
Adjust angle	Horizontal: 0°~360°, vertical: 0°~75°, rotation: 0°~360°
wide dynamic range	digital wide dynamic range
minimum illumination	Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Day and night switching mode	ICR infrared filter type
