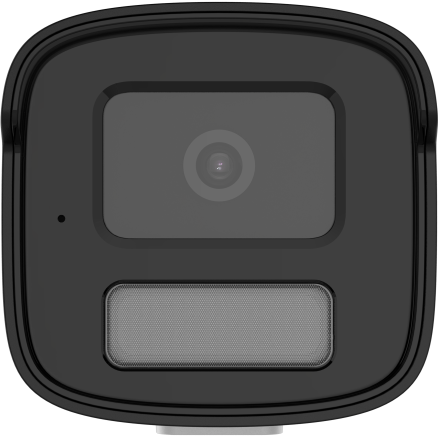

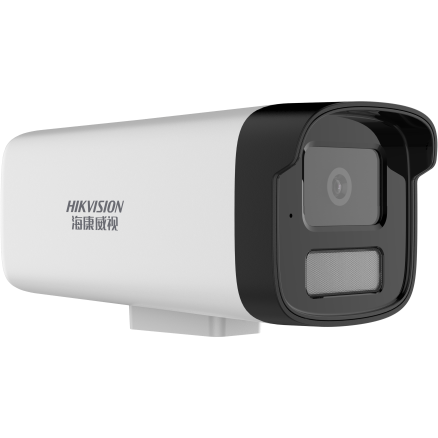

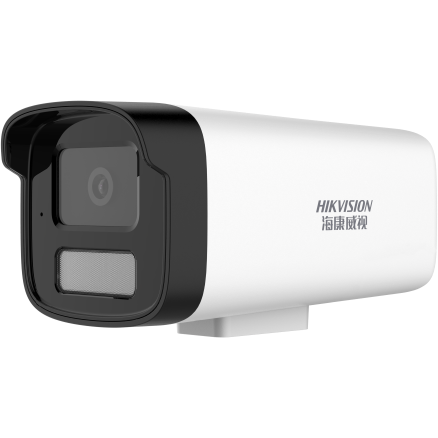

3 million white light full color tube PoE network camera
$28.50 – $30.50
Humanoid detection | Intelligent fill light | White light/infrared dual fill light | Built-in microphone | PoE
Description
Hikvision
DS-IPC-B13HV3-LA(4mm/PoE)(F) | DS-IPC-B13HV3-LA(6mm/PoE)(F) | DS-IPC-B13HV3-LA(8mm/PoE)(F) | DS-IPC-B13HV3-LA(12mm/PoE)(F)
DS-IPC-B13HV3-LA(4mm)(F) | DS-IPC-B13HV3-LA(6mm)(F) | DS-IPC-B13HV3-LA(8mm)(F) | DS-IPC-B13HV3-LA(12mm(F)
|
smart function
|
|---|
|
Alarm trigger
|
Motion detection (supports humanoid detection), abnormality
|
|
interface
|
|---|
|
network
|
1 RJ45 10M/100M adaptive Ethernet port
|
|
Audio
|
1 built-in microphone
|
|
network
|
|---|
|
network protocol
|
TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
|
|
Simultaneous preview of channels
|
Up to 6 channels
|
|
Interface Protocol (API)
|
Open network video interface, ISAPI, SDK, GB28181
|
|
User management
|
Up to 32 users can be managed with 3 levels of user rights: administrator, operator, and ordinary user
|
|
client
|
iVMS-4200
|
|
Browser
|
Use local service preview: Chrome 57.0+, Firefox 52.0+, Edge 89+
|
|
fill light
|
|---|
|
Fill light type
|
Intelligent fill light, switchable between white light and infrared light
|
|
Fill light distance
|
Infrared light can reach up to 30 m, white light can reach up to 30 m
|
|
Prevent fill light from overexposure
|
support
|
|
Infrared wavelength range
|
850nm
|
|
General specifications
|
|---|
|
Linkage method
|
Upload center
|
|
Product size
|
87.1 × 83.7 × 171.7mm
|
|
Packing size
|
216 × 121 × 118mm
|
|
Equipment weight
|
360g
|
|
Weight with packaging
|
543g
|
|
Storage temperature and humidity
|
-30 °C~60 °C, humidity less than 95% (no condensation)
|
|
Start-up and working temperature and humidity
|
-30 °C~60 °C, humidity less than 95% (no condensation)
|
|
Common functions
|
Heartbeat, password protection, watermark technology
|
|
Factory reset
|
Supports client or browser recovery
|
|
Current and power consumption
|
Non-PoE model: DC: 12 V, 0.42 A, maximum power consumption: 5 W PoE model: DC: 12 V, 0.42 A, maximum power consumption: 5 W PoE: IEEE802.3af, CLASS 3, maximum power consumption: 6.5 W
|
|
Power supply method
|
Non-PoE model: DC: 12 V ± 25%, supports anti-reverse polarity protection PoE model: DC: 12 V ± 25%, supports anti-reverse polarity protection PoE: IEEE 802.3af, CLASS 3
|
|
Power interface type
|
Ø5.5 mm round mouth
|
|
video
|
|---|
|
Main stream frame rate resolution
|
50 Hz: 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
|
|
Substream frame rate resolution
|
50 Hz: 25 fps (640 × 480, 640 × 360)
|
|
video compression standards
|
Main stream: H.265/H.264 Sub-stream: H.265/H.264
|
|
Video compression bit rate
|
32Kbps~8Mbps
|
|
H.264 encoding type
|
Baseline Profile/Main Profile/High Profile
|
|
H.265 encoding type
|
Main Profile
|
|
rate control
|
Fixed code rate, variable code rate
|
|
ROI
|
Not supported
|
|
lens
|
|---|
|
Focal length & field of view
|
4 mm, horizontal field of view: 86°, vertical field of view: 45°, diagonal field of view: 103° 6 mm, horizontal field of view: 53°, vertical field of view: 30°, diagonal field of view Angle: 61° 8 mm, horizontal field of view: 42°, vertical field of view: 23°, diagonal field of view: 49° 12 mm, horizontal field of view: 25°, vertical field of view: 14°, Diagonal field of view: 29°
|
|
Lens mount size
|
M12
|
|
Maximum aperture number
|
F2.0
|
|
|
|---|
|
smartIR
|
support
|
|
Image settings
|
Mirroring, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable through the client or browser
|
|
Day and night switching mode
|
Day, night, automatic, scheduled switching
|
|
image enhancement
|
Backlight compensation, strong light suppression, 3D digital noise reduction
|
|
Certification
|
|---|
|
protection
|
IP67
|
|
Audio
|
|---|
|
audio compression standard
|
G.711alaw/AAC-LC
|
|
Audio compression bit rate
|
64 Kbps (G.711alaw)/16~64 Kbps (AAC-LC)
|
|
Audio sample rate
|
8kHz/16kHz
|
|
Audio environment noise filtering
|
support
|
|
camera
|
|---|
|
Sensor type
|
1/2.7″ Progressive Scan CMOS
|
|
Maximum image size
|
2304 × 1296
|
|
minimum illumination
|
Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
|
|
shutter
|
1/3 s~1/100,000 s
|
|
wide dynamic range
|
digital wide dynamic range
|
|
Day and night switching mode
|
ICR infrared filter type
|
