DS-2CD1245-LA
$32.10
Intelligent fill light | White light/infrared dual fill light (infrared up to 50 meters, white light up to 30 meters) | Built-in microphone | Super smart encoding
Description
|
smart function
|
|---|
|
ordinary events
|
Motion detection (supports humanoid detection), abnormality
|
|
interface
|
|---|
|
Audio
|
1 built-in microphone
|
|
network
|
1 RJ45 10M/100M adaptive Ethernet port
|
|
network
|
|---|
|
Simultaneous preview of channels
|
Up to 6 channels
|
|
User management
|
Up to 32 users can be configured as administrators, operators, and ordinary users
|
|
client
|
iVMS-4200
|
|
Browser
|
Use local service preview: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
|
|
Interface Protocol (API)
|
Open network video interface, ISAPI, SDK, GB28181
|
|
network protocol
|
TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP, Bonjour, SSL/TLS, HTTPS, DDNS, UPnP, IPv4
|
|
fill light
|
|---|
|
Infrared wavelength range
|
850nm
|
|
Prevent fill light from overexposure
|
support
|
|
Fill light type
|
Intelligent fill light, switchable between white light and infrared light
|
|
Fill light distance
|
Infrared light can reach up to 50 m, white light can reach up to 30 m
|
|
General specifications
|
|---|
|
Start-up and working temperature and humidity
|
-30 ℃~60 ℃, humidity less than 95% (no condensation)
|
|
Storage temperature and humidity
|
-30 ℃~60 ℃, humidity less than 95% (no condensation)
|
|
Linkage method
|
Upload center
|
|
Common functions
|
Heartbeat, password protection, watermark technology
|
|
Factory reset
|
Supports client or browser recovery
|
|
Power supply method
|
DC: 12 V ± 25%, supports anti-reverse connection protection PoE model supports: IEEE 802.3af, Class 3
|
|
Current and power consumption
|
DC: 12 V, 0.42 A, maximum power consumption: 5 W PoE model supports: IEEE 802.3af, CLASS 3, maximum power consumption: 6.5 W
|
|
Power interface type
|
Ø5.5 mm round mouth
|
|

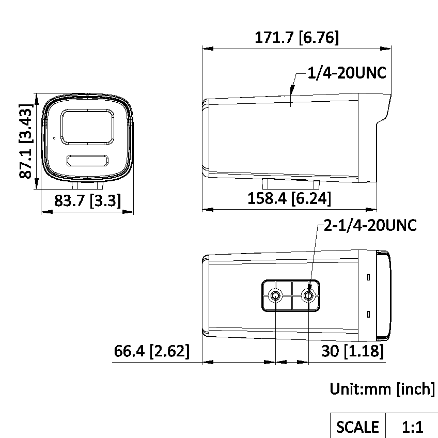

Product size
|
87.1 × 83.7 × 171.7mm
|
|
Packing size
|
216 × 121 × 118 mm
|
|
Equipment weight
|
360g
|
|
Weight with packaging
|
540g
|
|
video
|
|---|
|
maximum resolution
|
2560 × 1440
|
|
Main stream frame rate resolution
|
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
|
|
Substream frame rate resolution
|
50 Hz: 25 fps (768 × 432, 640 × 480, 640 × 360)
|
|
video compression standards
|
Main stream: H.265/H.264/Smart264/Smart265, supports super smart encoding sub-stream: H.265/H.264
|
|
Video compression bit rate
|
32Kbps~8Mbps
|
|
H.264 encoding type
|
BaseLine Profile/Main Profile/High Profile
|
|
H.265 encoding type
|
Main Profile
|
|
rate control
|
Fixed code rate, variable code rate
|
|
lens
|
|---|
|
Focal length & field of view
|
4 mm, horizontal field of view: 70°, vertical field of view: 35°, diagonal field of view: 85° 6 mm, horizontal field of view: 46°, vertical field of view: 24°, diagonal field of view Angle: 54° 8 mm, horizontal field of view: 43°, vertical field of view: 24°, diagonal field of view: 50° 12 mm, horizontal field of view: 27°, vertical field of view: 15°, Diagonal field of view: 31°
|
|
Maximum aperture number
|
F1.6
|
|
Lens size interface
|
M12
|
|
|
|---|
|
Day and night switching mode
|
Day, night, automatic, scheduled switching
|
|
image enhancement
|
Backlight compensation, strong light suppression, 3D digital noise reduction
|
|
Image settings
|
Mirroring, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable through the client or browser
|
|
Certification
|
|---|
|
protection
|
IP67
|
|
Audio
|
|---|
|
Audio environment noise filtering
|
support
|
|
Audio sample rate
|
8kHz/16kHz
|
|
audio compression standard
|
G.711alaw/AAC-LC
|
|
Audio compression bit rate
|
64 Kbps (G.711alaw)/16~64 Kbps (AAC-LC)
|
|
camera
|
|---|
|
Sensor type
|
1/2.7″ Progressive Scan CMOS
|
|
minimum illumination
|
Color: 0.005 Lux
|
|
shutter
|
1/3 s~1/100,000 s
|
|
Day and night switching mode
|
ICR infrared filter type
|
|
wide dynamic range
|
digital wide dynamic range
|
