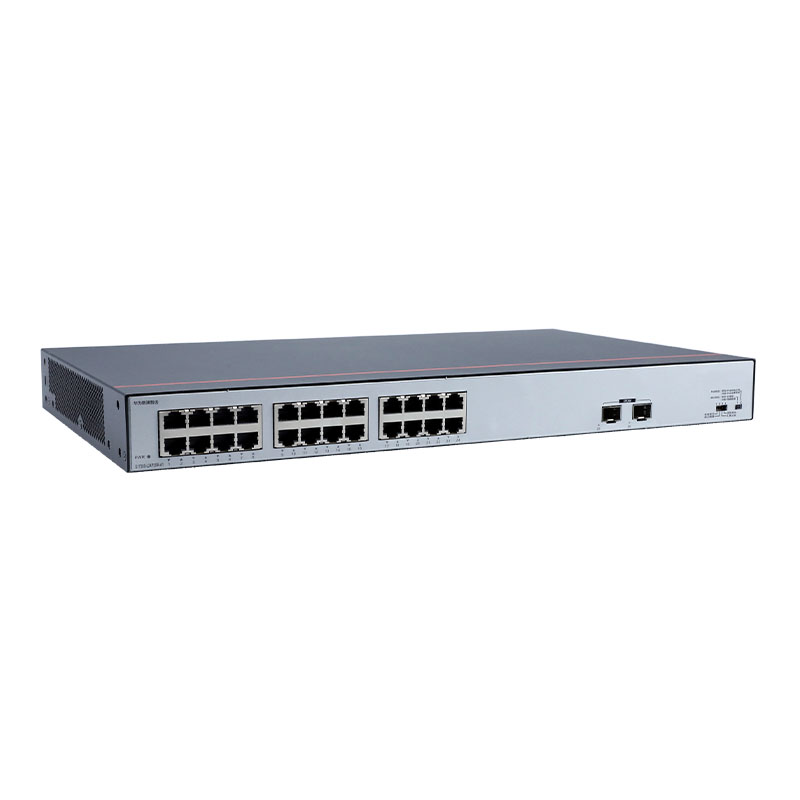

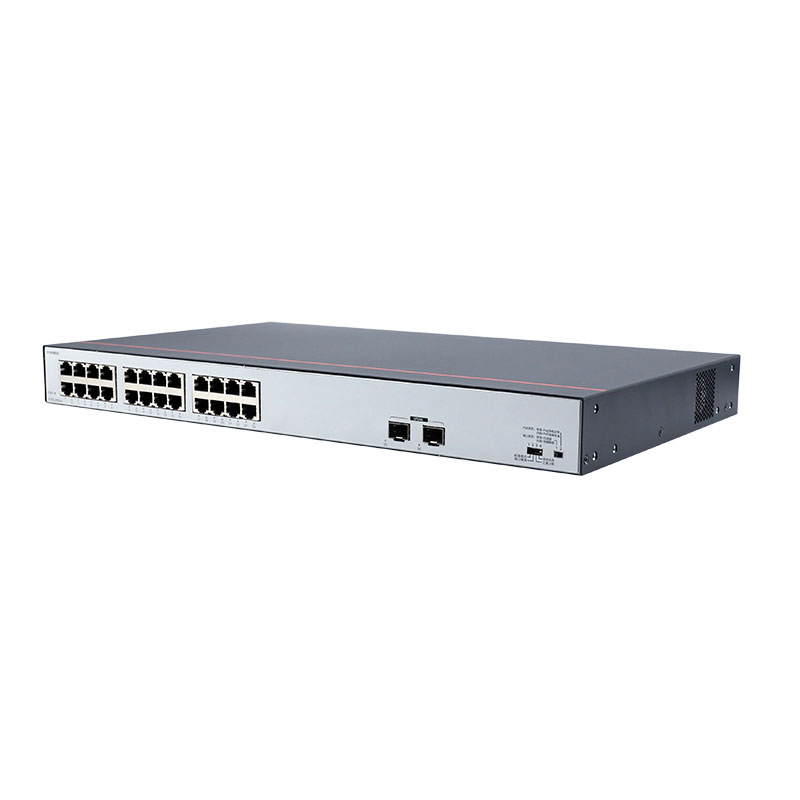

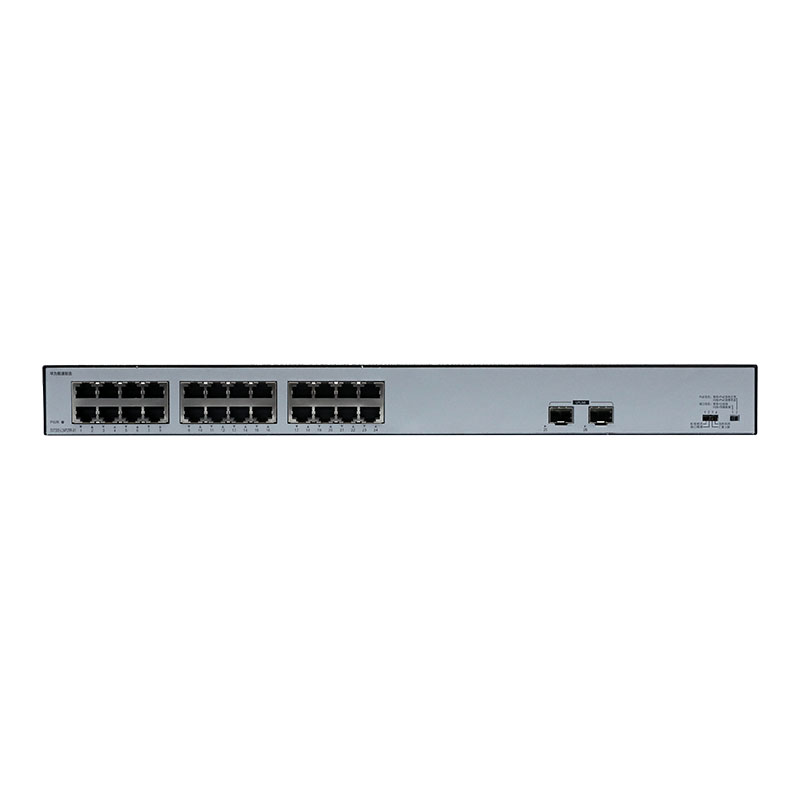

S1730S-L24P2SR-A1
$260.00
24 10/100/1000BASE-T Ethernet ports, 2 Gigabit SFP, PoE+, AC power supply
Description
The S1730S-L24P2SR-A1 is a cost-effective, smart managed switch designed for small and medium-sized businesses. It offers 24 Gigabit Ethernet ports with PoE support, as well as 2 Gigabit SFP uplink ports for flexible network connectivity. With advanced management and security features, this switch is suitable for a wide range of applications including office networks, small data centers, and remote branch offices.
Key Features:
- 24 Gigabit Ethernet ports with PoE support
- 2 Gigabit SFP uplink ports
- Easy-to-use web-based management interface
- Basic Layer 2 switching and security features
- Robust quality of service (QoS) capabilities
Detailed Specifications:
| Specification | S1730S-L24P2SR-A1 |
|---|---|
| Product Type | Switch |
| Ports | |
| – Total Ports | 26 |
| – Gigabit Ethernet Ports (PoE) | 24 |
| – Gigabit SFP Ports | 2 |
| Performance | |
| – Forwarding Rate | 35.7 Mpps |
| – Switching Capacity | 52 Gbps |
| Power Over Ethernet (PoE) | |
| – PoE Ports | 24 |
| – PoE Budget | 180W |
| Layer 2 Features | |
| – VLAN | Not Supported |
| – Link Aggregation | Supported |
| – MAC Address Table Size | 8K |
| Quality of Service (QoS) | |
| – Port-Based QoS | Not Supported |
| – Flow-Based QoS | Not Supported |
| Security | |
| – ACLs | Not Supported |
| – Port Security | Not Supported |
| – Loopback Detection | Not Supported |
| Management | |
| – CLI | Not Supported |
| – Web GUI | Not Supported |
| – SNMP | Not Supported |
| Physical Specifications | |
| – Dimensions (WxHxD) | 442 mm x 42 mm x 220 mm |
| – Weight | 3.2 kg |
| – Power Supply | AC, redundant power options (optional) |
| Operating Environment | |
| – Operating Temperature | 0°C to 45°C |
| – Humidity | 5% to 95% (non-condensing) |
| Compliance | |
| – Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z, etc. |
| – Certifications | CE, UL, FCC, etc. |
Note: Specifications and features may vary depending on regional availability and product configuration. Please refer to the official product documentation for the most up-to-date information.
