TL-SF1005M

$6.00

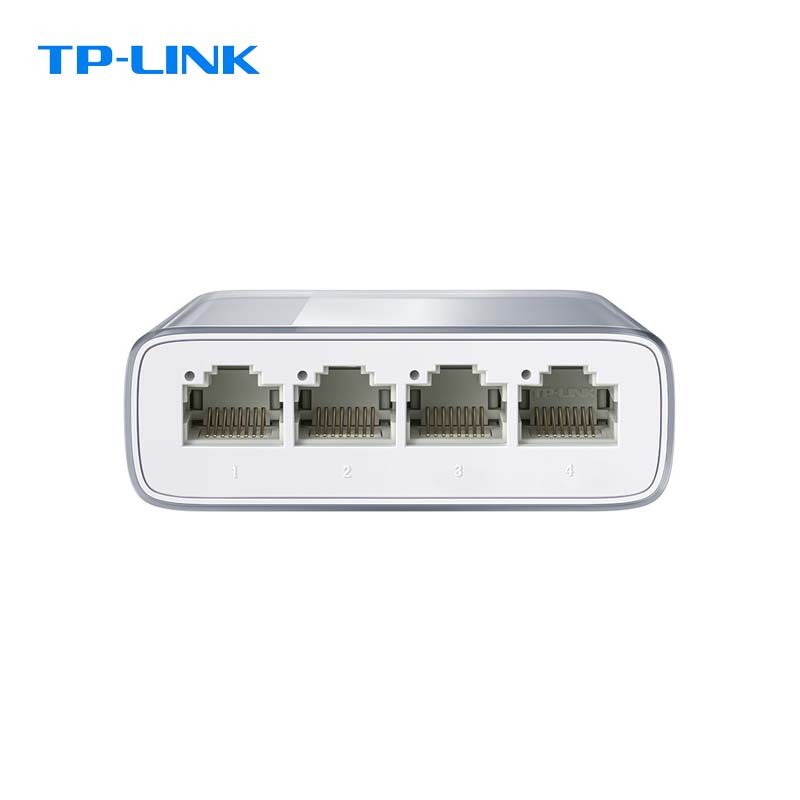

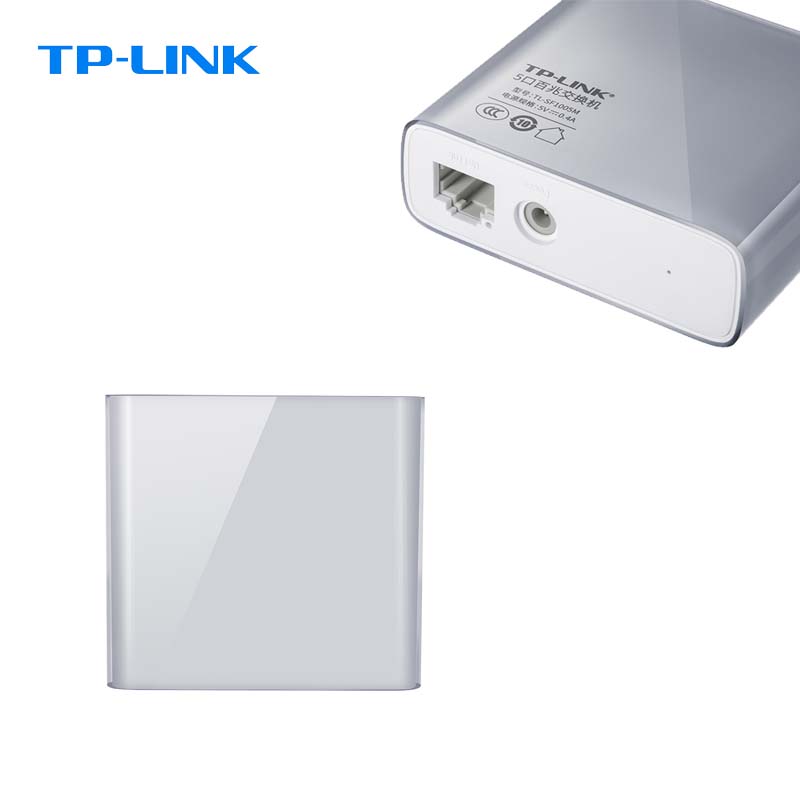

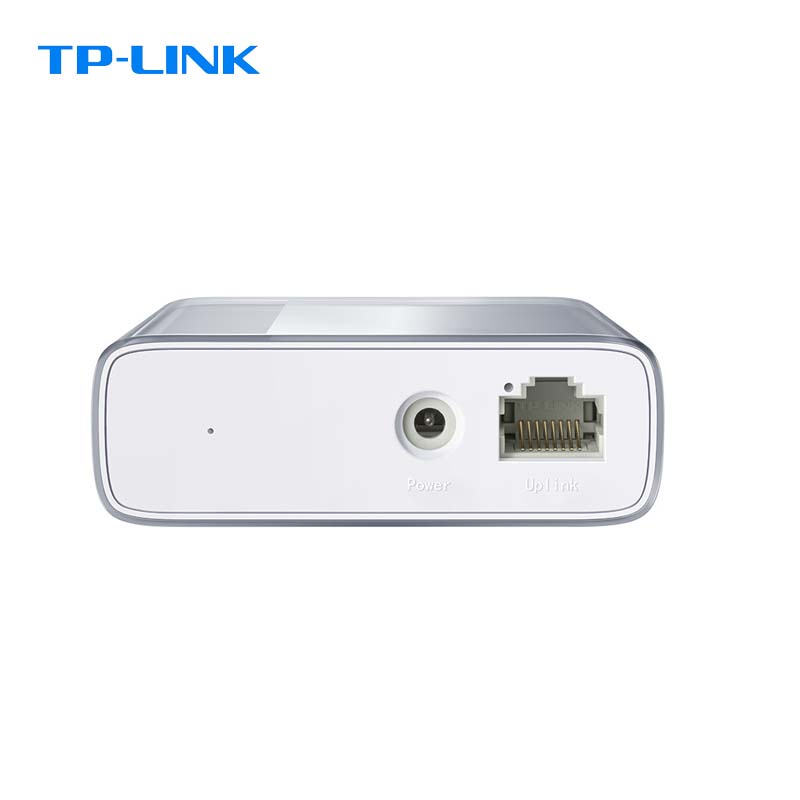

TL-SF1005M is a plastic case 5-port 100M Ethernet switch that provides 5 10/100M adaptive RJ45 ports.

SKU: TL-SF1005M
Category:

Description

TL-SF1005M is a plastic case 5-port 100M Ethernet switch that provides 5 10/100M adaptive RJ45 ports. All ports support line-speed forwarding and MDI/MDIX automatic flip function, plug and play.

High-speed transmission, stable online

Provides 5 10/100M adaptive RJ45 ports, all ports can achieve line-speed forwarding;

Use enterprise-level standards to build exchange switches, fully optimize performance, and comprehensively improve product performance;

Each port supports MDI/MDIX automatic flipping and duplex/rate auto-negotiation;

Supports IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control.

Hardware specifications

protocol standards
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3x
interface
  • 5 10/100M adaptive RJ45 ports (Auto MDI/MDIX)
led
  • 5 status lights
  • Power
size
  • 72mm*65*mm*24.5mm (L x W x H)
network medium
  • 10Base-T: Category 3 or above UTP
  • 100Base-TX: Category 5 UTP
MAC address table
  • 2K
Power specifications
  • 5VDC/0.4A

other

Packaging accessories
  • 5-port 100M switch TL-SF1005M
  • power adapter
  • User Manual
  • warranty card
Usage environment
  • Working temperature: 0℃ to 40℃
  • Storage temperature: -40℃ to 70℃
  • Working humidity: 10% to 90%RH non-condensing
  • Storage humidity: 5% to 90%RH non-condensing
