Description

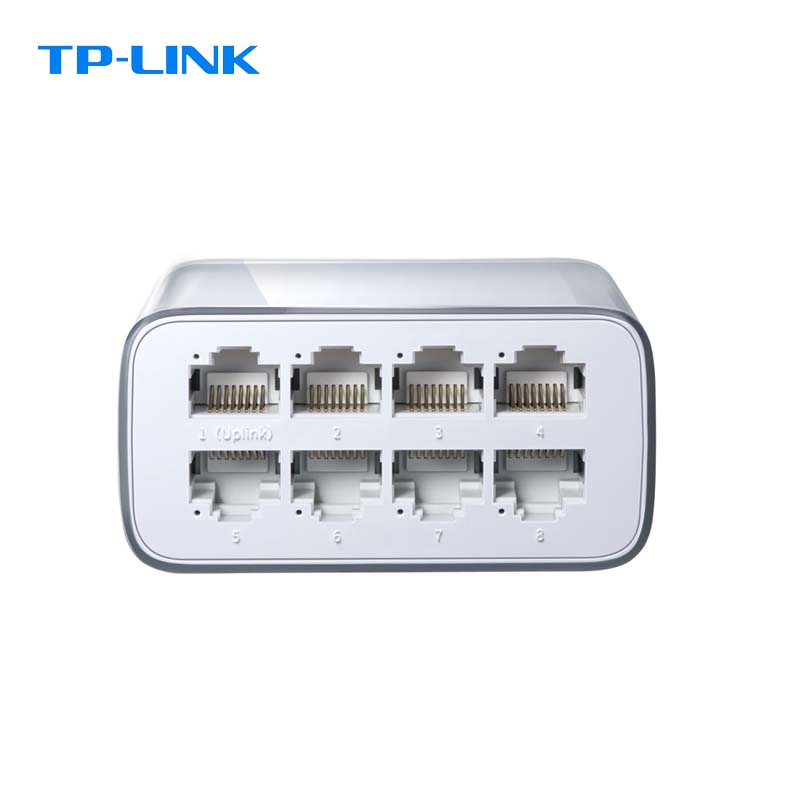

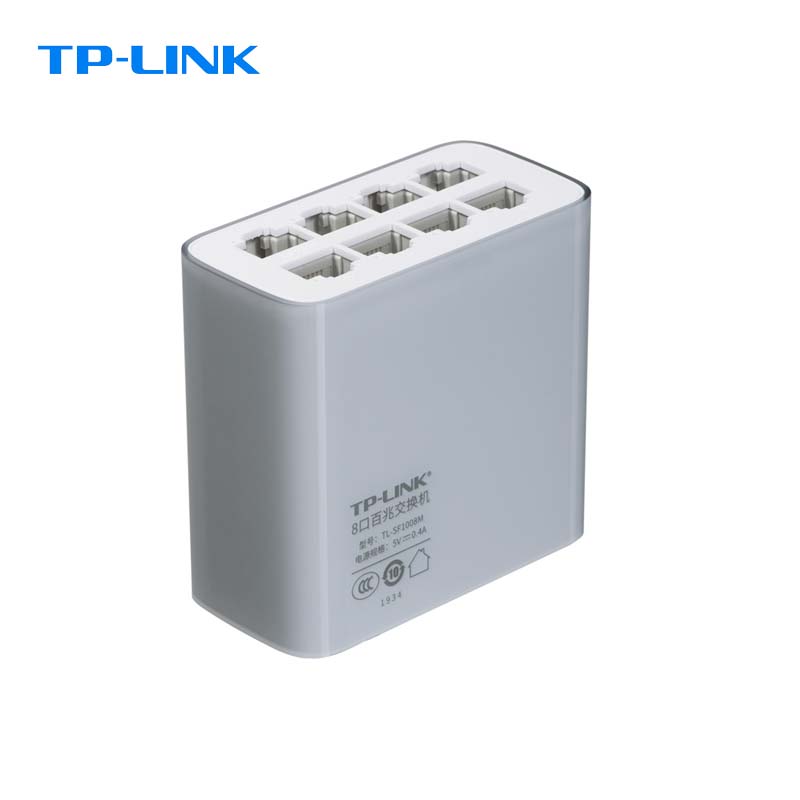

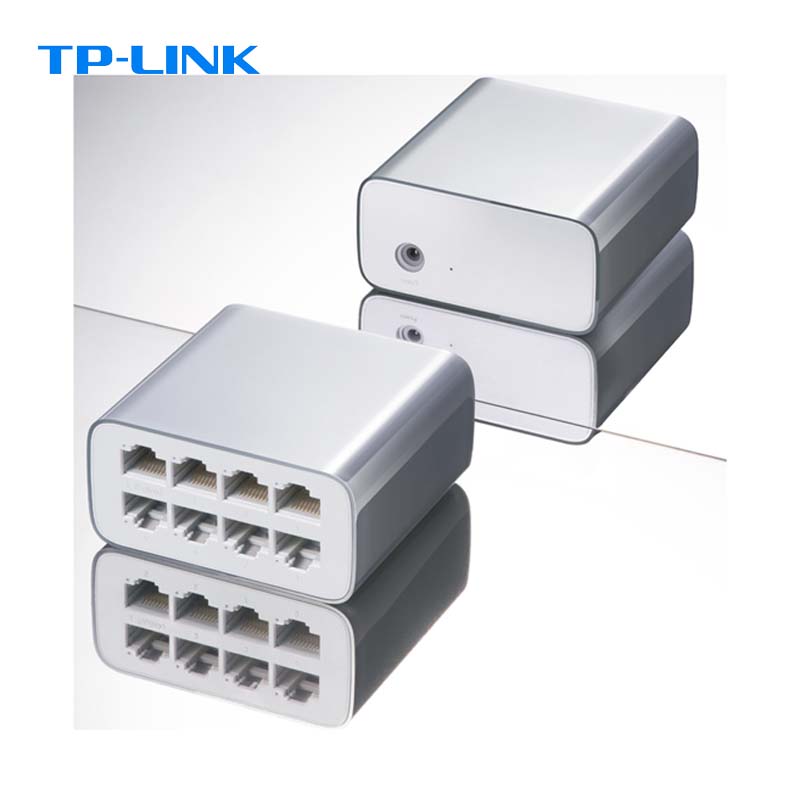

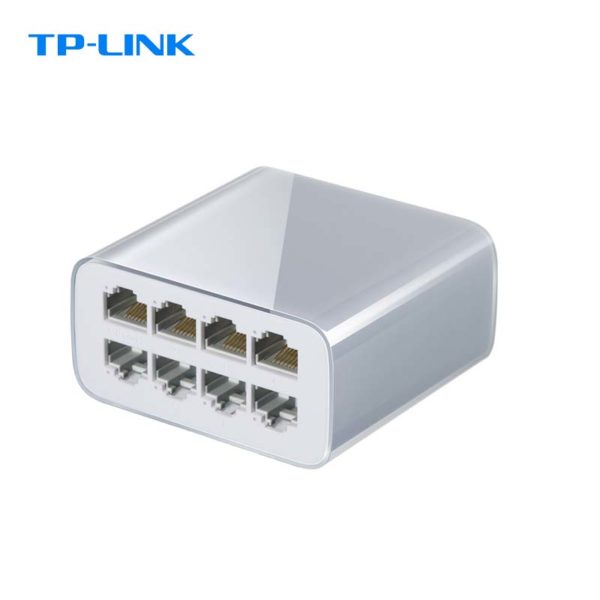

TL-SF1008M is a plastic case 8-port 100M Ethernet switch that provides 8 10/100M adaptive RJ45 ports. All ports support line-speed forwarding and MDI/MDIX automatic flip function, plug and play.

High-speed transmission, stable online

Provides 8 10/100M adaptive RJ45 ports, all ports can achieve line-speed forwarding;

Use enterprise-level standards to build exchange switches, fully optimize performance, and comprehensively improve product performance;

Each port supports MDI/MDIX automatic flipping and duplex/rate auto-negotiation;

Supports IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control.

Hardware specifications

protocol standards	IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
interface	8 10/100M adaptive RJ45 ports (Auto MDI/MDIX)
led	8 status indicators PWR (power supply)
size	74mm*69*mm*36.7mm (L x W x H)
network medium	10Base-T: Category 3 or above UTP 100Base-TX: Category 5 UTP
MAC address table	2K
Power specifications	5VDC/0.4A

other

Packaging accessories	8-port 100M switch TL-SF1008M power adapter User Manual warranty card
Usage environment	Working temperature: 0℃ to 40℃ Storage temperature: -40℃ to 70℃ Working humidity: 10% to 90%RH non-condensing Storage humidity: 5% to 90%RH non-condensing
