Description

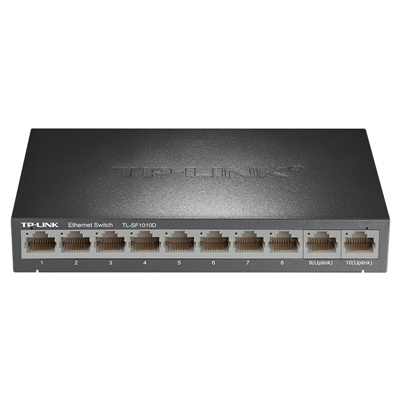

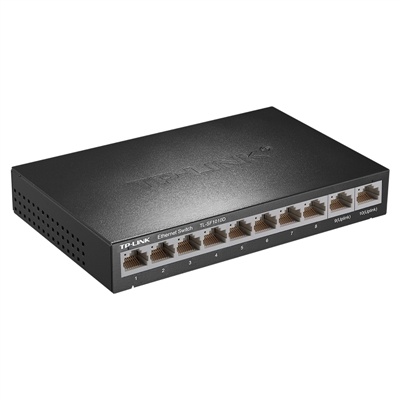

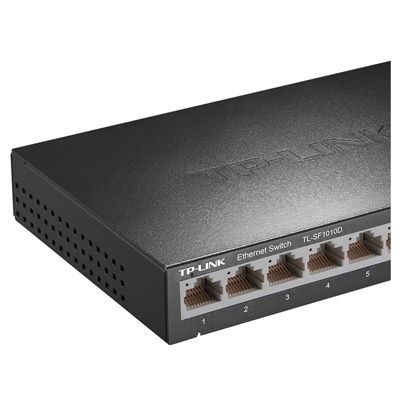

TL-SF1010D is a 10-port 100M Ethernet switch product developed by Pulian Technology Co., Ltd. for small visual security environments. It provides 8 10/100M ordinary ports and 2 10/100M uplink ports, and only requires one switch. Meet the networking requirements of 8-way or 4-way visual security network.

10 100M ports, suitable for small visual security networks

Provides 8 10/100M common ports and 2 10/100M uplink ports ;

Only one switch is needed to meet the networking requirements of 8-way or 4-way visual security network;

Each port supports MDI/MDIX automatic flipping and duplex/rate auto-negotiation;

Supports IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control.

Hardware specifications

network standards	IEEE802.3, IEEE802.3u, IEEE802.3x
network medium	10BASE-T: Category 3, 4, 5 unshielded twisted pair (≤100 meters)< 100BASE-TX: Category 5 and above unshielded twisted pair (≤100 meters)
port	10 10/100M adaptive RJ45 ports
indicator light	Per port: Link/Act Per device: PWR
performance	store and forward Supports 2K MAC address table depth
Overall dimensions (L*W*H)	158×100×25(mm)

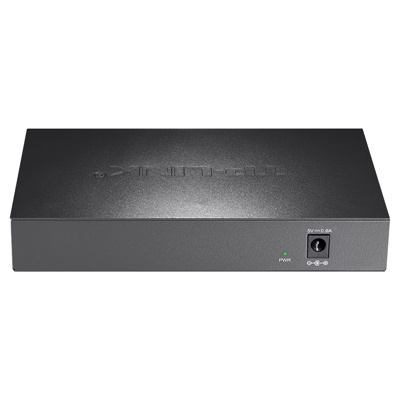

input voltage	External power adapter: 5VDC/0.6A
Usage environment	Working temperature: 0℃～40℃; Storage temperature: -40℃～70℃ Working humidity: 10% ~ 90% RH non-condensing; Storage humidity: 5% ~ 90% RH non-condensing

Software specifications

Basic functions	Line speed forwarding MAC automatic learning and aging IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control
Forwarding rate	10BASE-T: 14880pps 100BASE-TX: 148800pps/port
